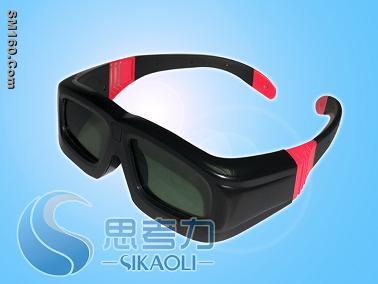

Instructions:

How to open / close the glasses?

Open the 3D glasses: Press the power button on the left by glasses. LED indicator light will flash it.

Close 3D glasses: hold down the power button until the LED is lit.

If you can not receive the signal in three minutes , the glasses will automatically shut down.

How to use 3D glasses to watch 3D contents?

1. Set the screen will display 3D images.

2. Play 3D media.

3. Open and wear 3D glasses.

4. If you find discrete images or ghosting, in the OSD menu, perform 3D Sync Inverse (3D simultaneous reverse) function.

Battery indicator flashes situations.

Battery capacity of the 3D glasses lasts for 70 hours . When the battery life is about to end, the indicator LED chain lightning 4 times every 1 minute, until the battery is completely depleted. When you are in the case of low battery open 3D glasses, LED will be lit for 5 seconds,and then shut down.

How to protect 3D glasses?

1. To avoid scratching the lens, be careful not to spill liquid on the glasses.

2. To avoid glasses in extreme temperature environments.

3. Use a soft cloth or a special cloth to clean glasses .

3D compatibility testing

1. Access PS3 HDMI interfaces, 60Hz output, the output resolution of 1080P, successfully open the 3D features, glasses work.

2. Access PS3 Component Interface, 60HZ output, the output resolution of 1080P, successfully open the 3D features, glasses work.

3. Access Kim DVD, video interface, 60Hz output, smooth open 3D, glasses work.

4. Access Kim DVD, component interface, component, 60Hz output, smooth open 3D, glasses work.

5. Access IBM T61 laptop, VGA interfaces, 60HZ output, the output resolution of 1280x720, smoothly open 3D, glasses work.

6. Access IBM T61 laptop, VGA interfaces, 120HZ output, the output resolution of 1280x720, smooth open 3D, glasses, work.

7. Access IBM T61 laptop, VGA interfaces, 60HZ and 120HZ effect in both cases there is no difference.

3D functions testing.

1. Open the 3D feature, the projector menu, built-in modes (cinema, standard, dark theater, custom, etc.) are not optional.

2.Open 3D feature, brightness of the screen remained the same, but put on glasses because glasses filter effect, the actual feeling of brightness drop watch about 40%, but still bright enough to watch the 120-inch screen .

3.Open the 3D feature, put on glasses ,press the power switch on the glasses, if ghosting effect is not obvious , select 3D deflection function.

4.Wear glasses can be any move, even if the person is balanced with the screen ,as long as the place to see the curtain can see 3D effect. NVIDIA 3D glasses is not limited to the receiver and the angle limitations.

Nice design, lightweight (only 45g), high brightness, 1000:1 contrast ratio ensure perfect picture quality, 1.5-millisecond response time is unlikely to cause eyes fatigue, you can wear all day. A built-in rechargeable 150mA Li-ion battery re-charger and USB, at least last 80 consecutive hours. Automatically enter standby mode: If you do not receive the sync signal, the system will go into standby mode within 10 minutes.

Technical characteristics:

Shutter: high-speed LCD FSTN.

Refresh rate: 120Hz.

Transfer rate: 39% -41%.

Contrast: 1000:1.

Battery Type: Button-type replaceable battery.

Synchronization: Infrared (room temperature).

Response Time: 1.5 ms.

Continuous working time: 60 hours or more.

We company provide a full range of 3D active shutter glasses, are as follows:

1.3D television series; (Support: Sony, Panasonic, Samsung, LG, Sharp, ... etc.).

2.3D cinema series; (support: IMAX 3D, RealD Cinema, MasterImage 3D, XpanD 3D and Dolby 3D).

3. 3D projection series; (3D projector to support the brand.) **%%**.

4.3D Computer (3D display), (3D displays support the brand.120HZ).

5.Compatible 3D series, full support for all active 3D equipment. Welcome distributors, wholesalers, foreign trade, co-provider. Our company provides OEM and ODM services, welcome the large order!

Our production is currently supporting the active use of the projector 3D stereoscopic shutter glasses, the projector supports the following models:

ACER series：Acer H5360 DLP Projector；Acer P1100 DLP Projector；Acer P1200 DLP Projector；Acer P1203 DLP Projector；Acer P5205 DLP Projector。

BenQ series：BenQ MP511+ DLP Projector；BenQ MP612C DLP Projector；BenQ MP626 DLP Projector；BenQ MP670 DLP Projector；BenQ MP722 DLP Projector；BenQ MP772 ST DLP Projector；BenQ MP776 ST DLP Projector

Dell series：Dell 1610HD DLP Projector；Dell M210X DLP Projector；Dell M410HD DLP Projector；Dell S300 DLP Projector；Dell S300W DLP Projector。

MITSUBISHI series：Mitsubishi XD600U DLP Projector；Mitsubishi XD600U-G DLP Projector。

NEC series：NEC NP216 DLP Projector

Optoma series：Optoma EW531 DLP Projector；Optoma EW536 DLP Projector；Optoma GT360 DLP Projector；Optoma Pro350W DLP Projector；Optoma TX762 DLP Projector；Projectiondesign F10 AS3D DLP Projector；

Sharp series：Sharp PG-D2710X DLP Projector；Sharp PG-D3010X DLP Projector；Sharp PG-D3510X DLP Projector；Sharp PG-D45X3D DLP Projector；

ViewSonic：ViewSonic PJD5112 DLP Projector；ViewSonic PJD6210-3D DLP Projector；ViewSonic PJD6211 DLP Projector；ViewSonic PJD6220-3D DLP Projector；ViewSonic PJD6221 DLP Projector；ViewSonic PJD6251 DLP Projector；ViewSonic PJD6381 DLP Projector；Vivitek D508 DLP Projector；Vivitek D509 DLP Projector；Vivitek D510 DLP Projector；Vivitek D511 DLP Projector；Vivitek D535 DLP Projector；Vivitek D825MX DLP Projector。

PJD5112

Series DLP projection technology.

Chip DLP 0.55 ".

Standard resolution :800x600.

Brightness (lumens) 3000

Image projection screen size (inch) 40" ~ 300 "(diagonal)

.Projection Distance (m) :1.5 to 11.3 meters.

contrast :2500:1.

keystone vertical + -40

Audio output :speaker.

Input line frequency: (KHz) 31 ~ 100 KHz.

Field frequency: 50 ~ 120Hz.

Connector video interface RGB in × 2/RGB out × 1 / composite video × 1 / S terminal × 1 /.Color component terminals (with a VGA switch to component cable converter) / USB (B type, mouse and software upgrades) x1/RS-232x1 \

.Infrared remote control receiver port (front) x2.Audio interface, audio in × 1 / Audio out × 1.

Power :235W (typical), <1W ( standby).

Dimensions:  (mm) 280mm (W) x 114mm (high) x 218mm (D).

Body weight (Kg): 2.66kg.
