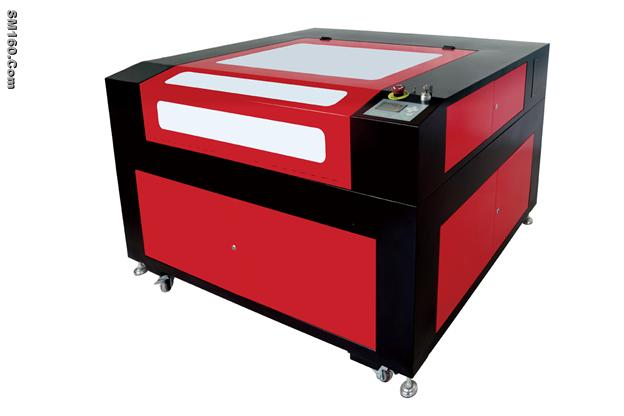

Redsail CM series laser cutting machine adopts high precision three-phase motors as drive part, utilizes three original straight line guide tracks in axis and Y imported from Taiwan. Upgrading structure design improves the regulation accuracy of the flight path of rays and the laser's use efficiency. This series of laser cutting and engraving machine is an ideal choice for professional user.

Redsail Laser Cutter / Laser Cutting Machine works with CO2 Laser, it is used for cutting wooden plate, acrylic, paper, plastic, rubber and other no-metal materials for complex shape. Redsail low cost Laser Cutter is useful in many products such as air plane model, advertisement, decoration, article gifts, toys, and face guard of machine.

Redsail Laser Cutting Machine/Laser Cutter is designed for industry application, driven by high-grade stepper motor, precision guide way drive and High-precision in positioning make the running more stable, Large area precision cutting mechanical movement system can guarantee smoothness and flatness of cut cross section. The Laser power of Redsail Laser cutter (Laser Cutting Machine) is from 60W to 130W.

Standard accessories

(01) Laser Engraving software Package (English Version)
(02) User Manual (CD)
(03) Industry water cooling system
(04) Air exhaust fan
(05) Air Pump
(06) Communication cable
(07) 3 Reflect optics (installed in the machine)
(08) 1 Focus optics (installed in the machine)
(09) 1 Laser tube
(10) Other tools

Optional accessories

(01) Laser tube of high power
(02) Honeycomb platform
(03) Red DOT positioning function
(04) Double head

Technical Parameters
