Specification:


Seimens temperature control of programmable logic controller (PLC) 1. T choiceautomatically, extruder stopped, as if the temperature of the water heater or thermocouple damage.


2. A die head diehead. Under the pressure of the message PLCshots screw the pressure inside the die head if is too high.


3. In order to maintain a cover screw temperature, so can make the heating time is short


4. The temperature is controlled Seimens ban.


Seimens extrusion motor 5. The band.


Parameters:

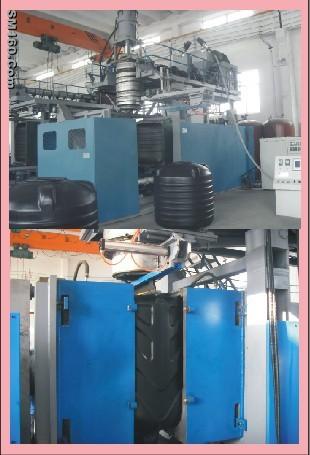

Specifications 1,000 liters


3 layer model.


The extruder diameter (internal) 90mm


Screw diameter (layer), as the middle


Screw diameter (outer) one


Plastisizing ability 300kg/h


L/D than 2


Gear box hard surface


Extruder drive motor (internal) 30kw


Extruder drive motor (outer) 45kw


50kw thermal load


60rpm Max screw speed


28kg accumulator capacity


For 400x285mm pusher cylinder


50kw thermal load


360X50mm Parison control for the cylinder


Die - Core size for [min/Max] 410MM


No more than 25 kg parison weight,


Max open molding 2600mm gripping clamping between agencies plate


Clamping board between minimum opening 1000 mm


1500x1700mm Max mold size


700kn fits the mold force


Thickness 800-1600 mold


Clamping pull bar rolling


Stretching and blow 400-800mm unit spread stroke


Shu no more than 300 mm


The electrical control panel thickness controller 100 keyboards MuGe segmentation shekels


Eview main operation panel


Die head control temperature control Siemens



Hydraulic system hydraulic drive motor (main) 37kw


Hydraulic drive motor (Parison 7.5 kw control)


800l tank capacity


Hydraulic mould


movement


arrangement



Claw gripped stroke 350 mm


Stroke 2000mm emissions


3pcs hopper loader bucket the barbell


3pcs hopper 50 kg


Productivity 12-15pcs yield/h


1000 LTR. 10-16kg products weight



Delivery period for 3 months
